RampNerd — Mini Ramp Design Tool & CNC Plans in Minutes

Mini Ramp Design and Planning Tool.

Design

In 3D, input your space, shape, specs, done.

Optimize

Runtime estimates, material parts, no surprises.

Export

CNC, cut guides, detailed BOM, and assembly manual.

Why RampNerd?

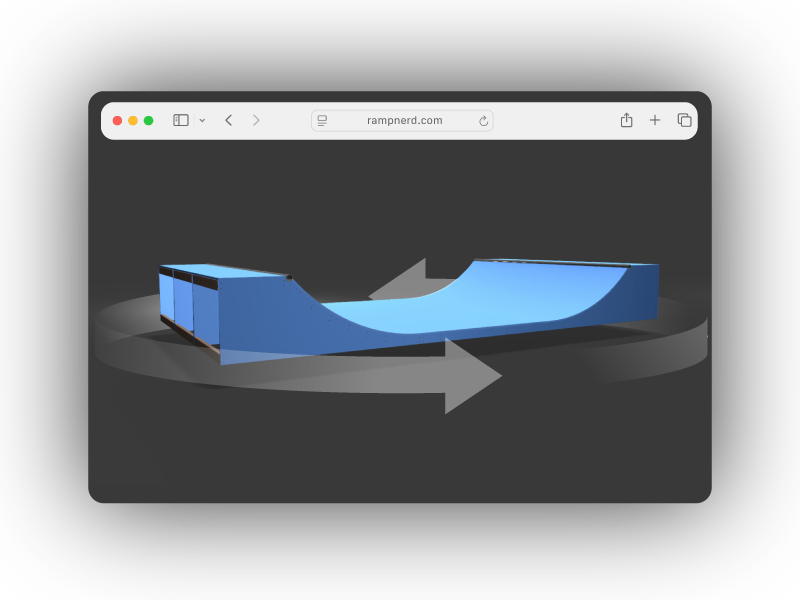

Intuitive 3D

Set every dimension, transition radius and coping reveal.

Live Cost Tracking

Enter local prices for plywood, studs, screws & more; watch totals update in real time.

CNC or Hand‑Cut

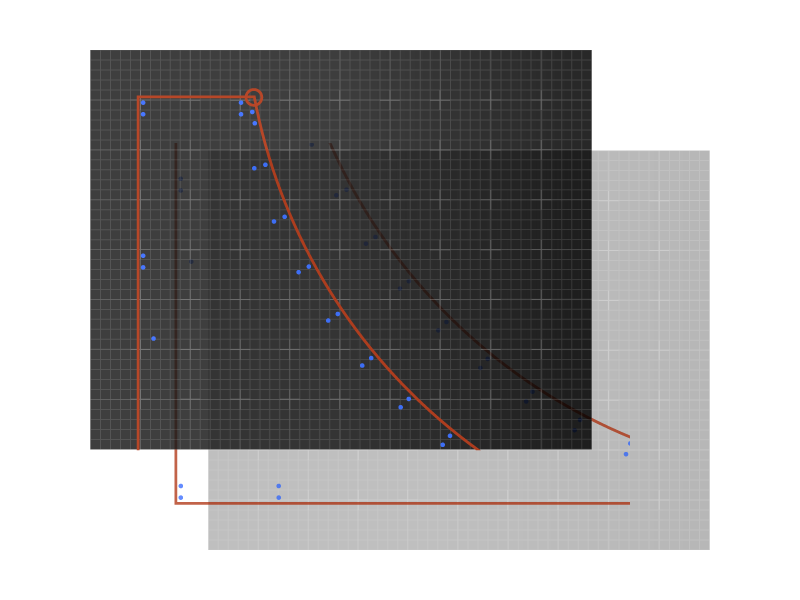

Download DXF side panels for routers or printable cut‑sheets for jigsaws and track saws.

Clear Manual

Simple step‑by‑step PDF that anyone with basic tools can follow.

Indoor & Outdoor Modes

Automatically applies material and finish presets that match your environment.

Tweak Details

Stud spacing logic, coping reveal math and material thickness checks stop costly errors.

How it works

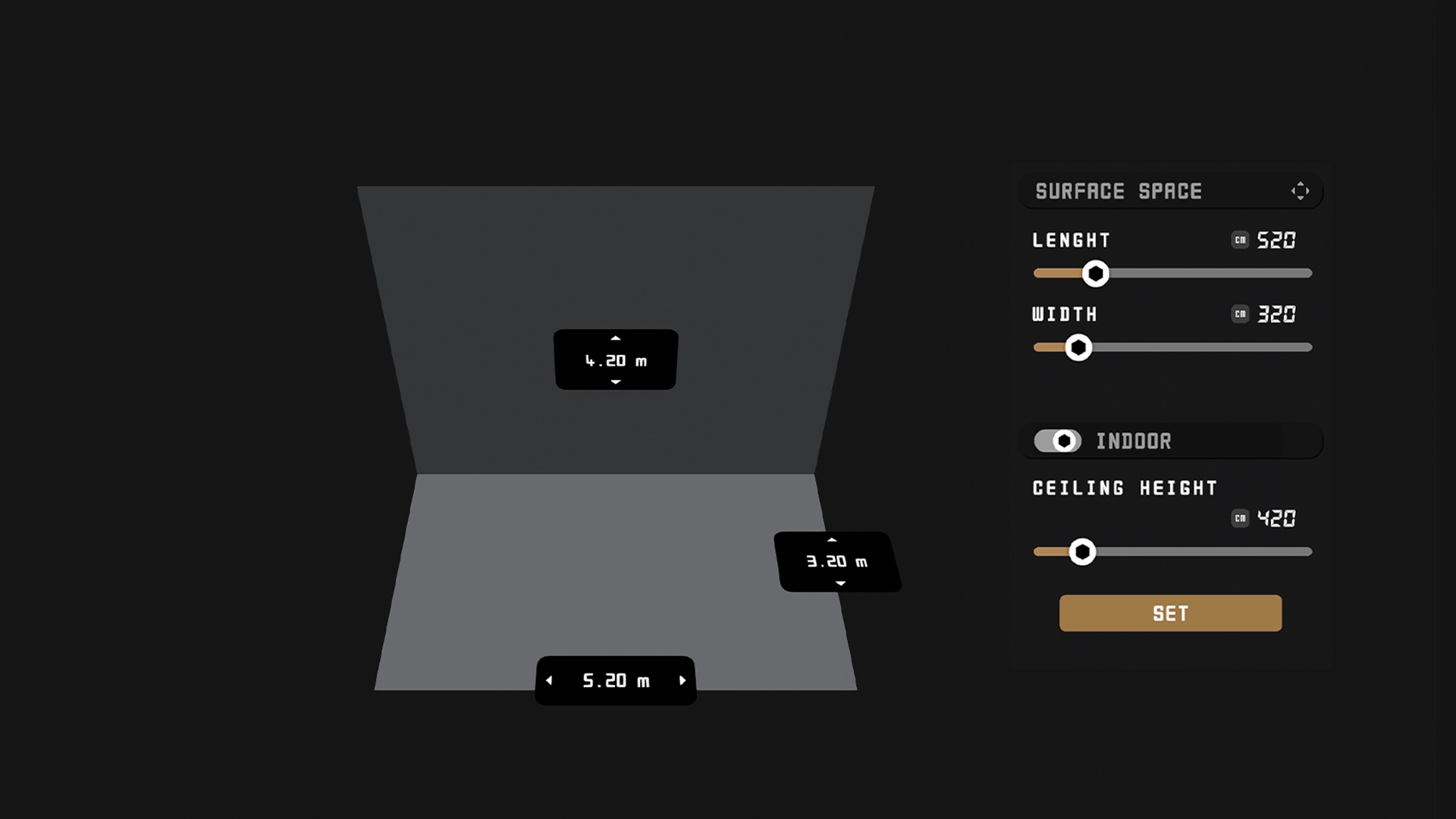

1. Set Your Space

Define your available floor space and ceiling height. Especially useful for indoor builds.

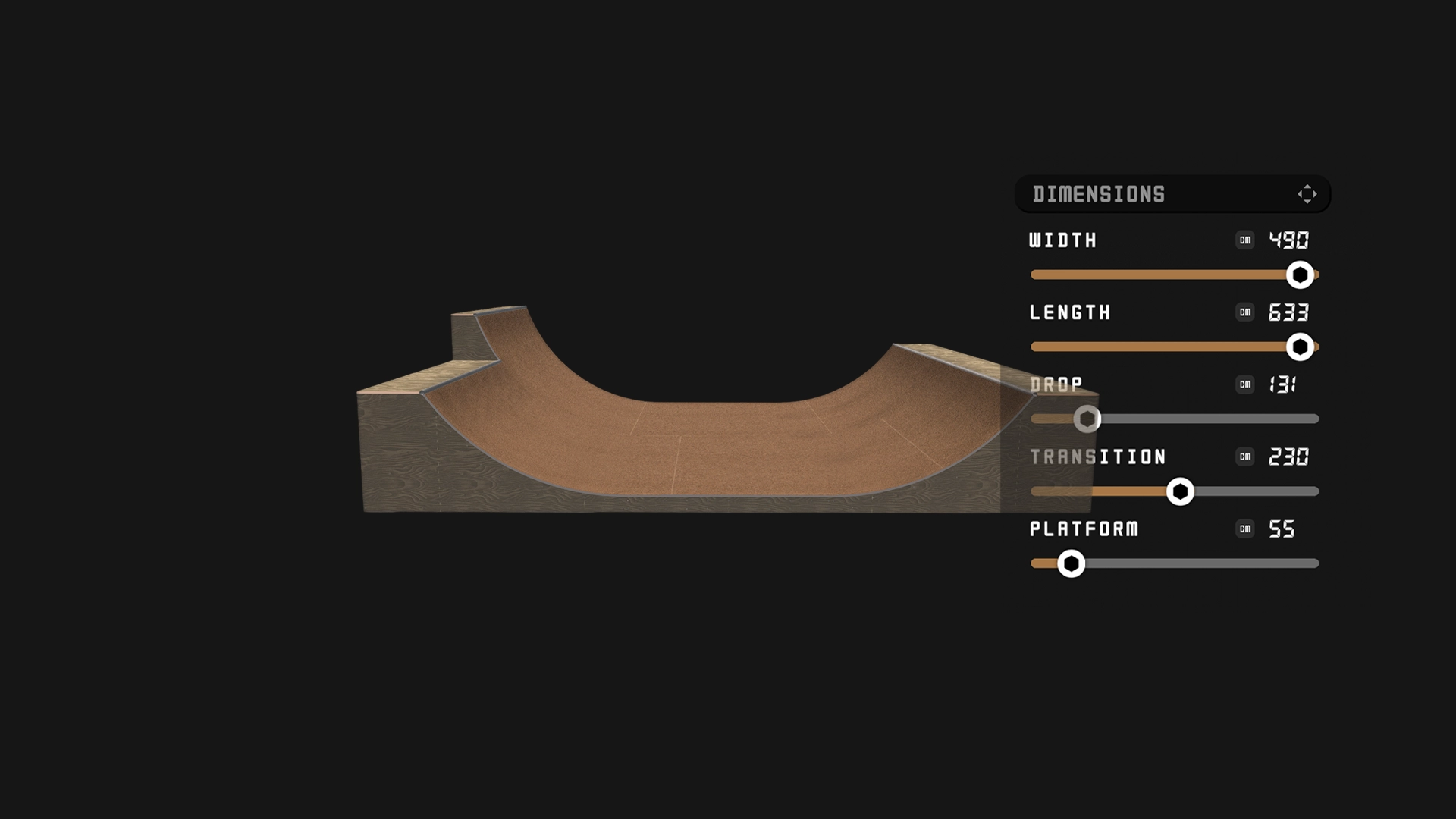

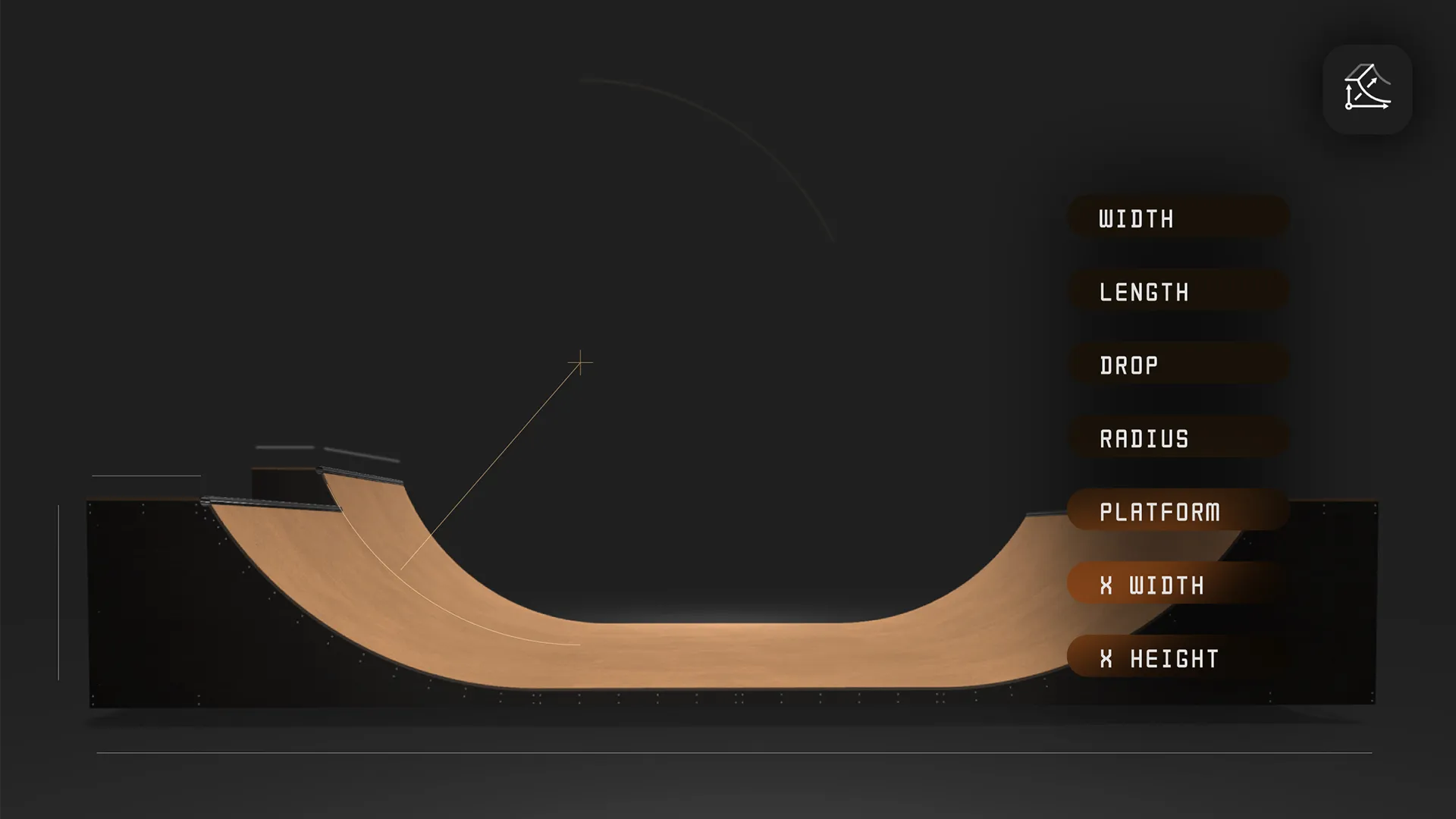

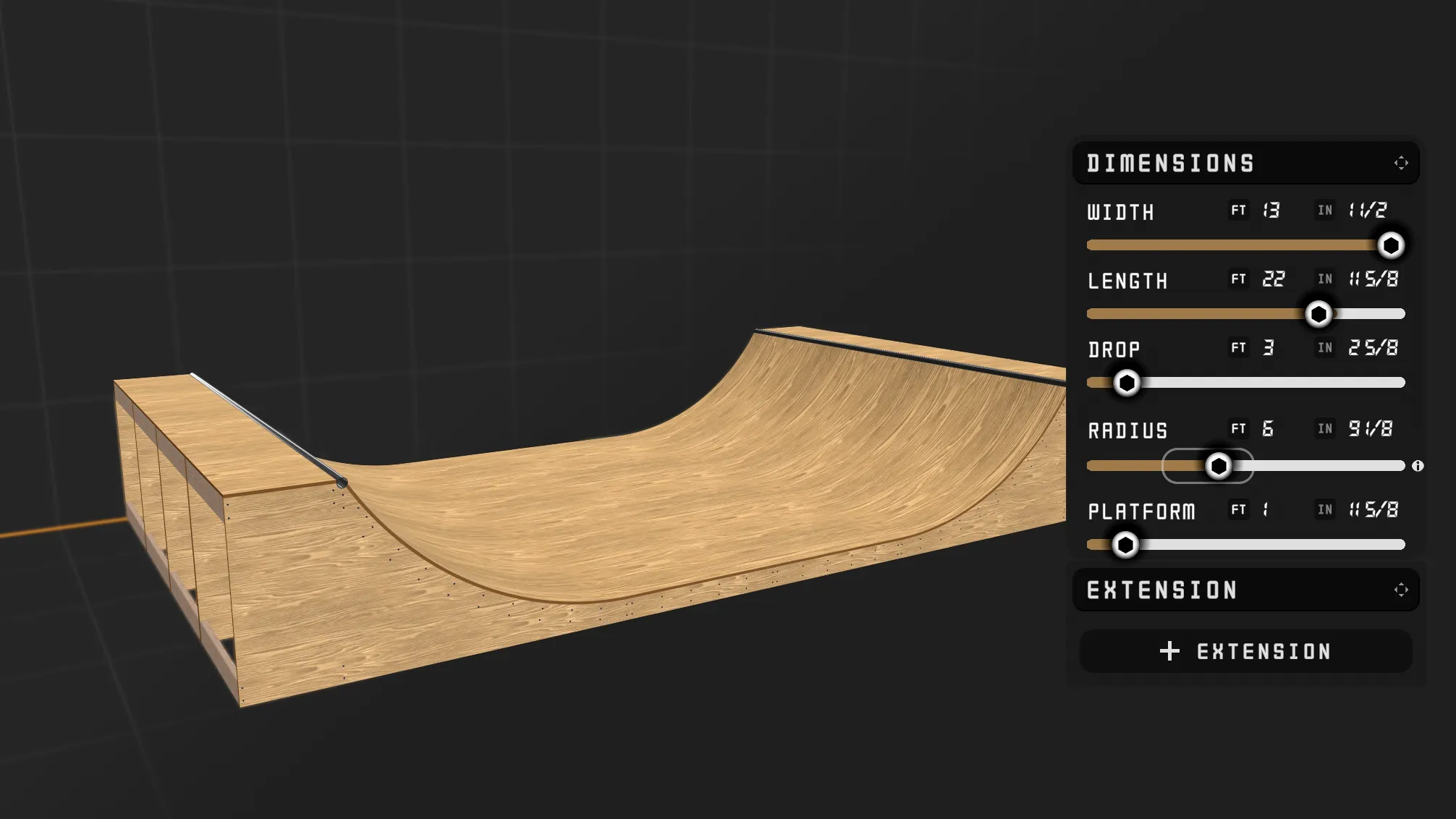

2. Shape the Ramp

Set your drop, transition radius, platforms, and optional extensions. Total control, no templates.

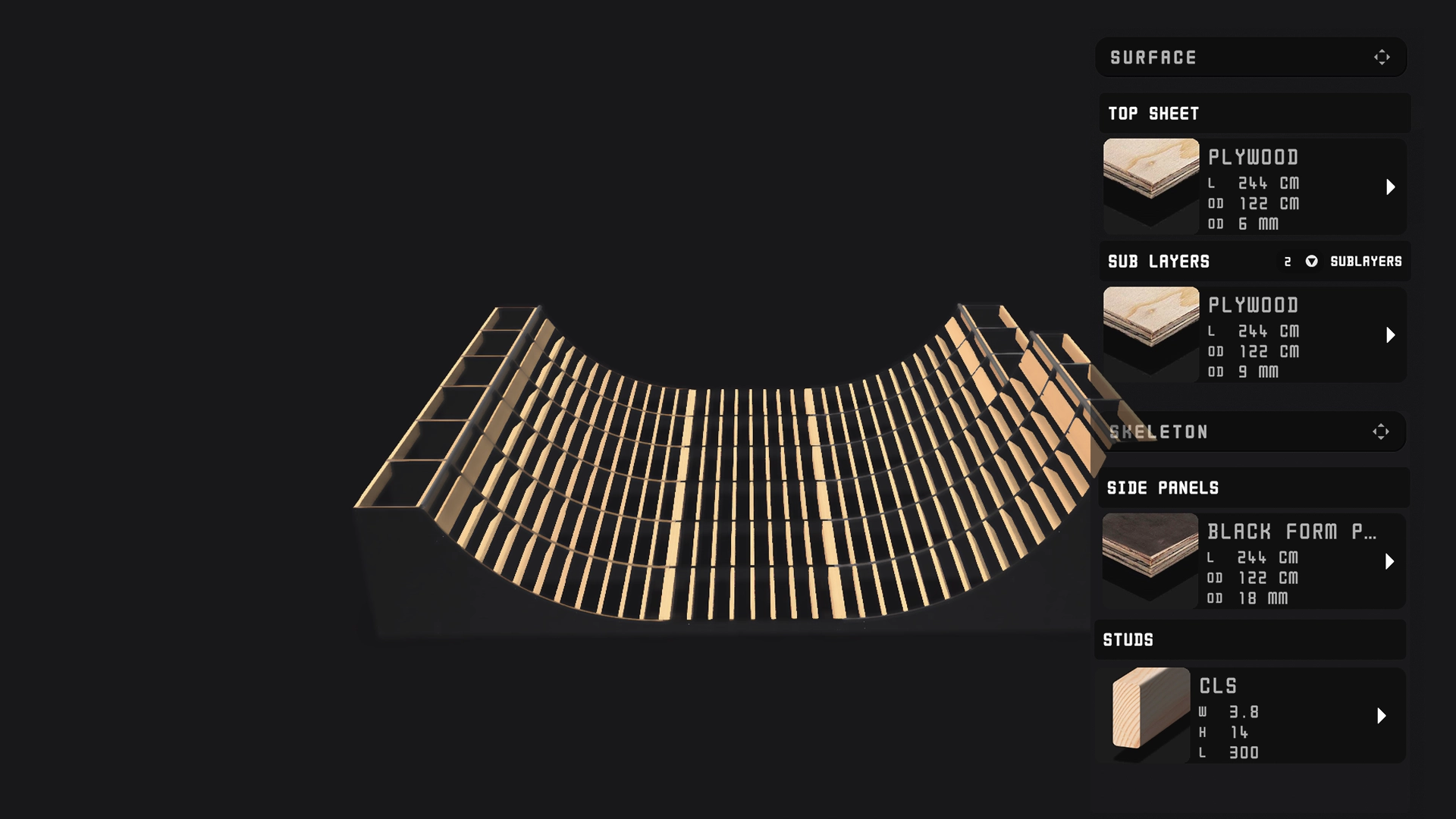

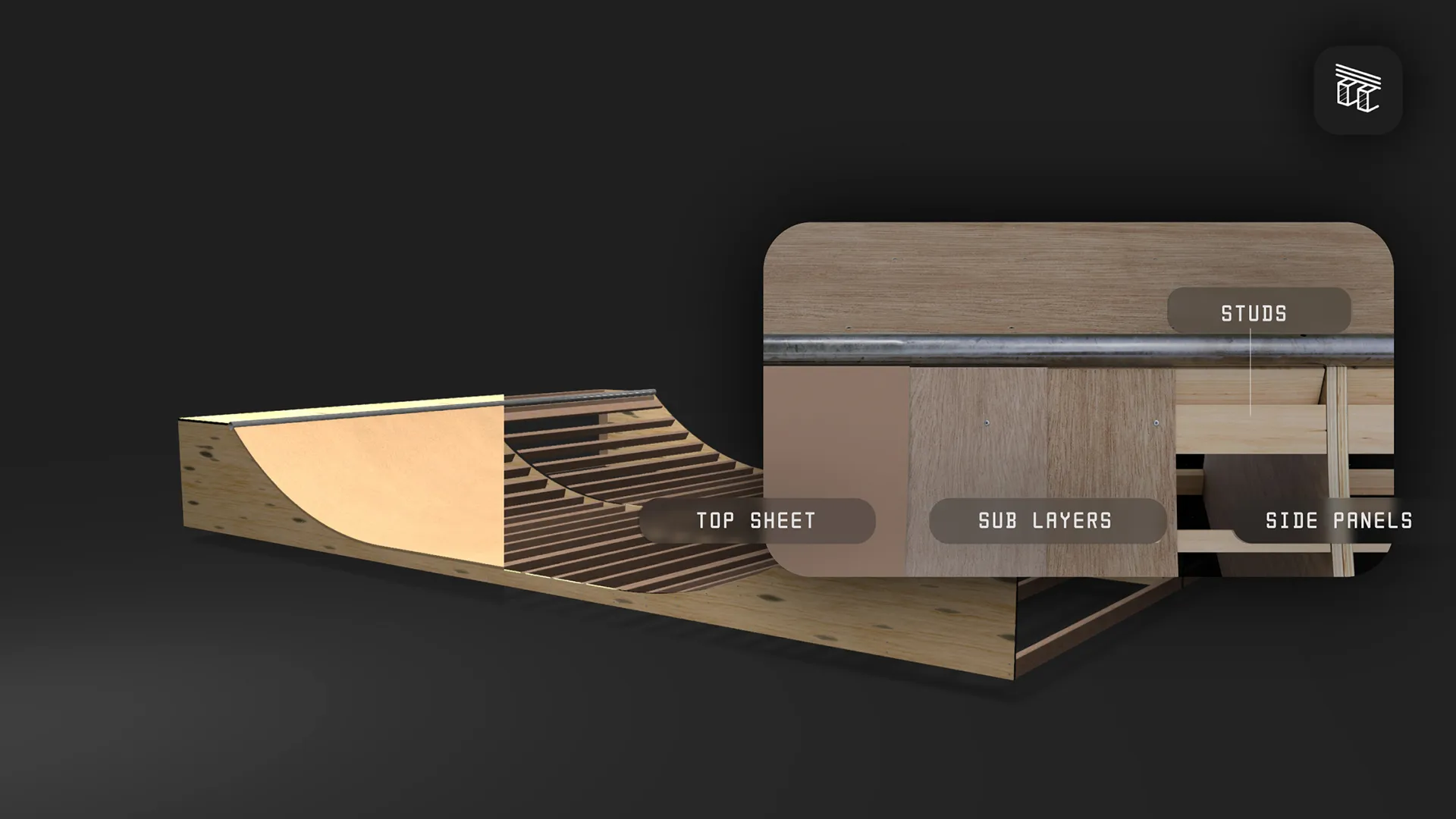

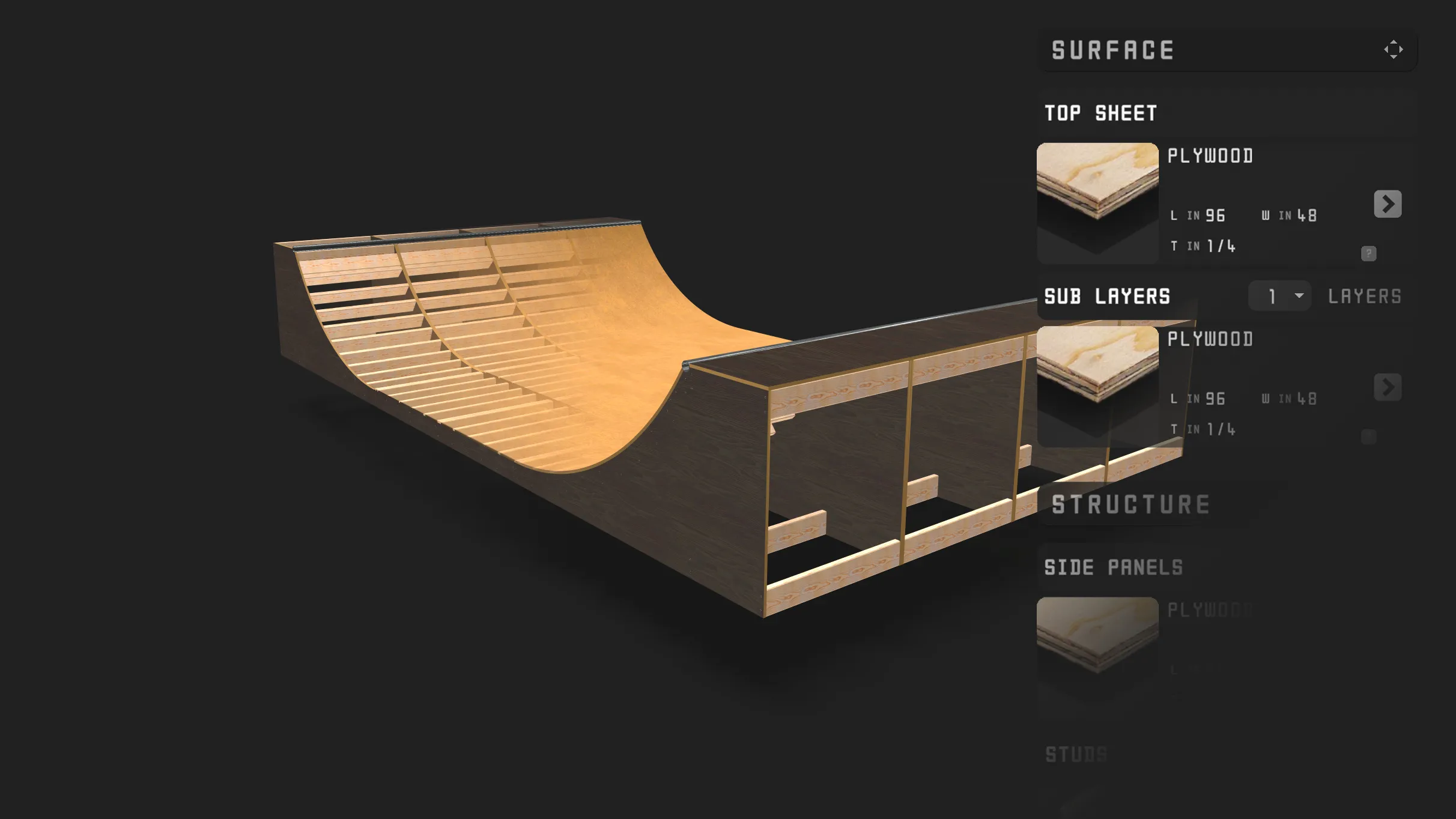

3. Select Materials

RampNerd suggests presets that match your design. Want to use your own stock? Add custom sheets, studs, or fasteners. Or skip it entirely—RampNerd always preselects valid defaults.

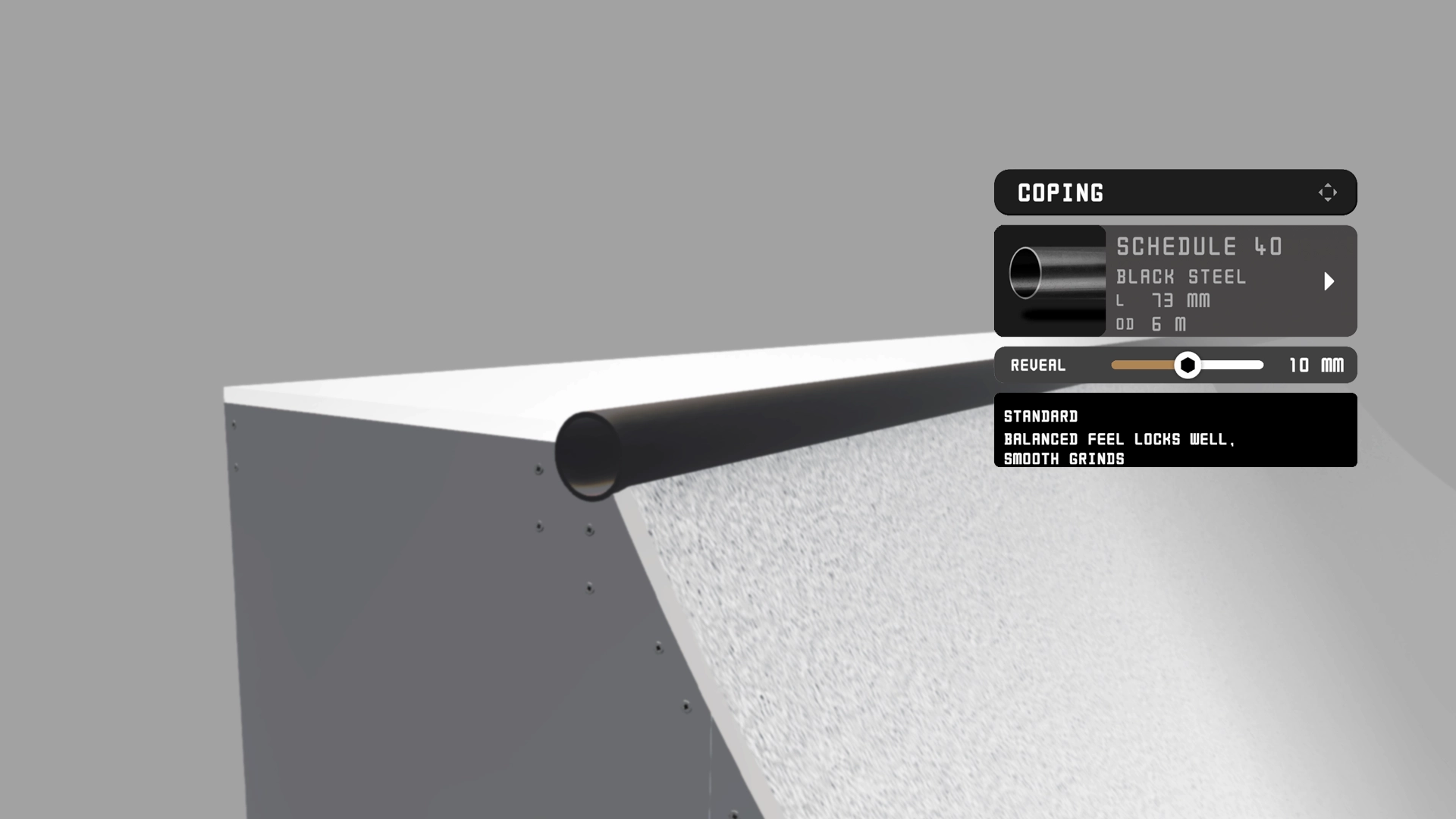

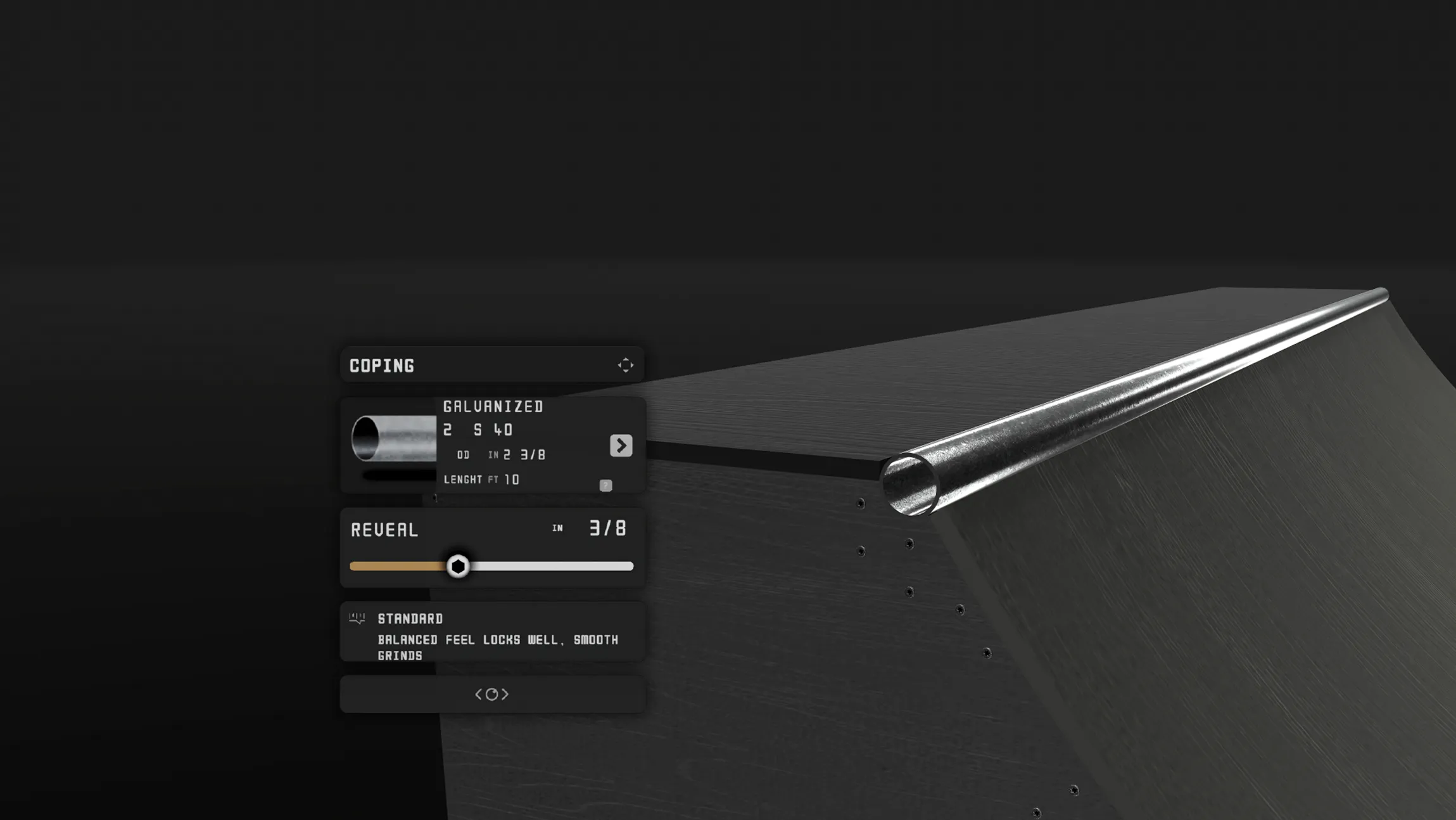

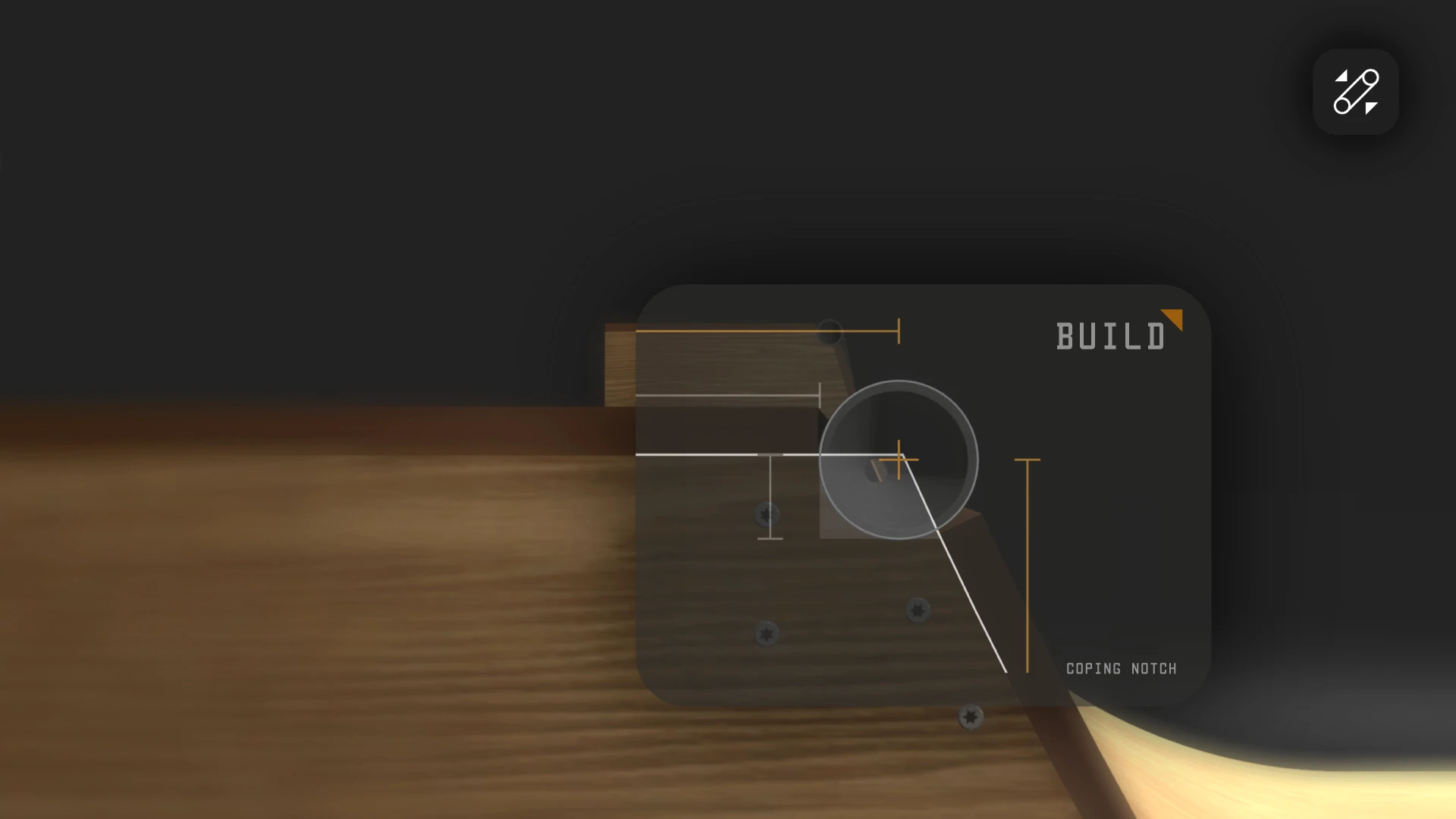

4. Set the Coping

Choose from proven presets or enter your exact outer diameter. Reveal is locked across the design—so your coping sits flush every time.

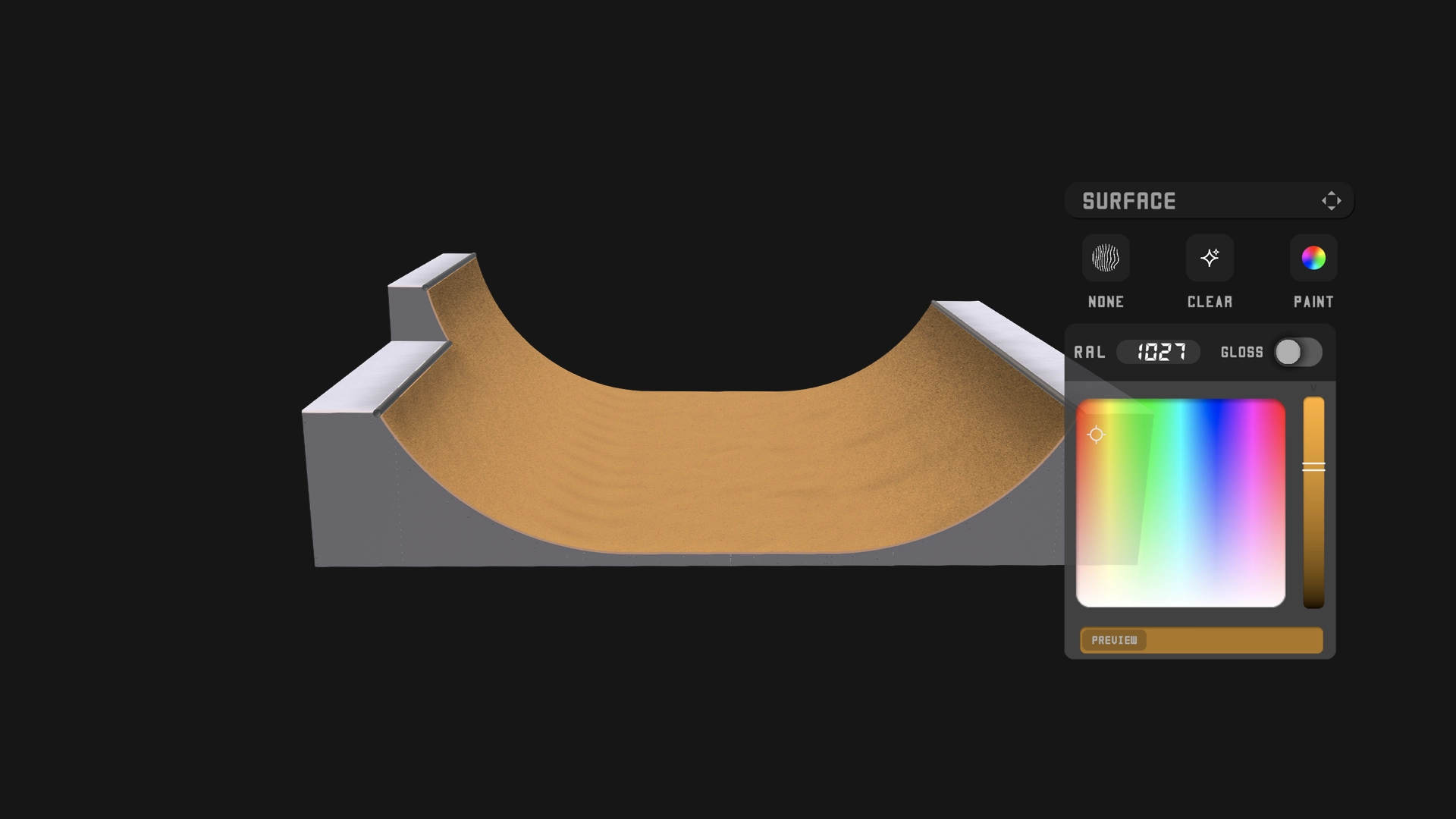

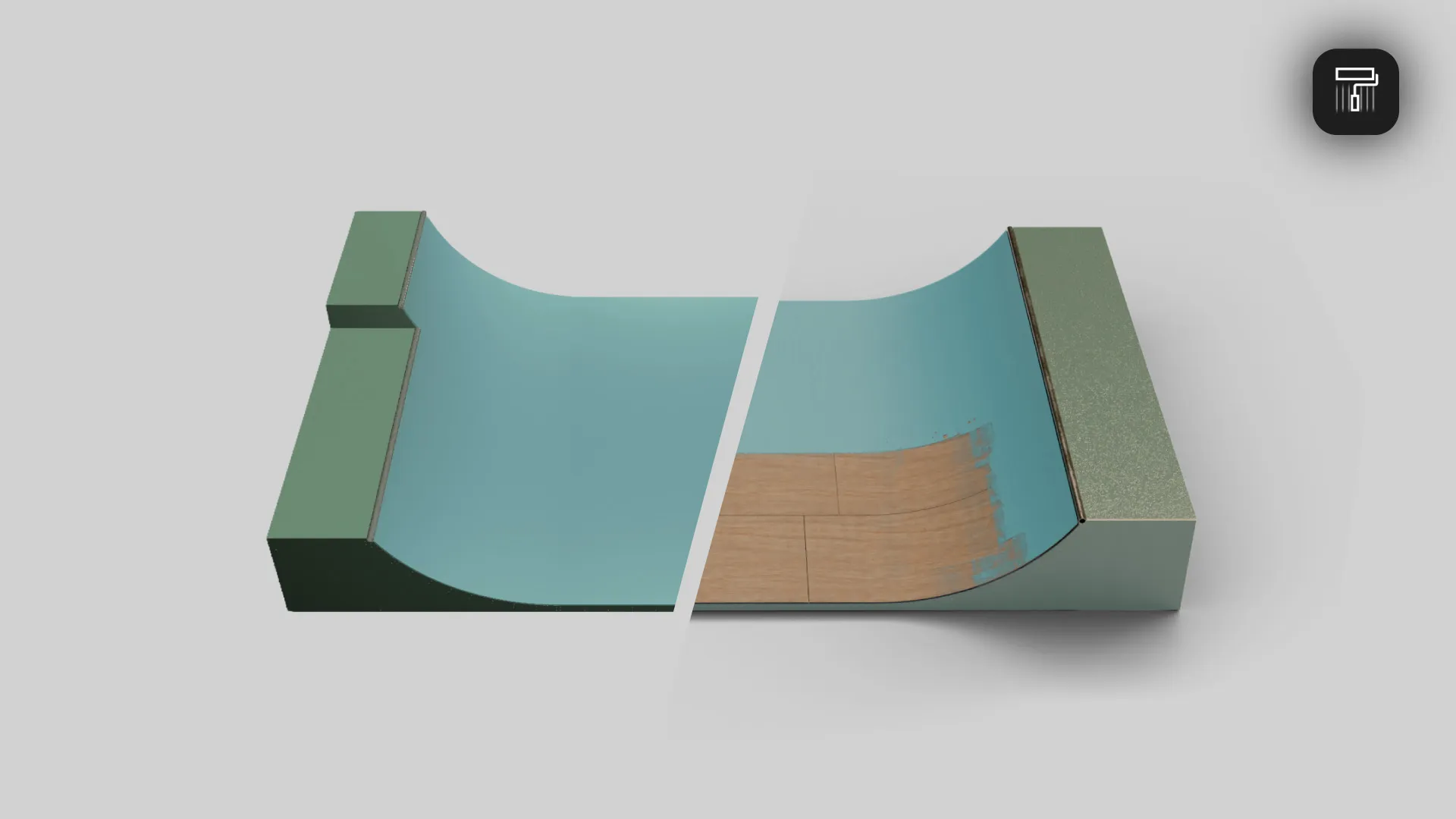

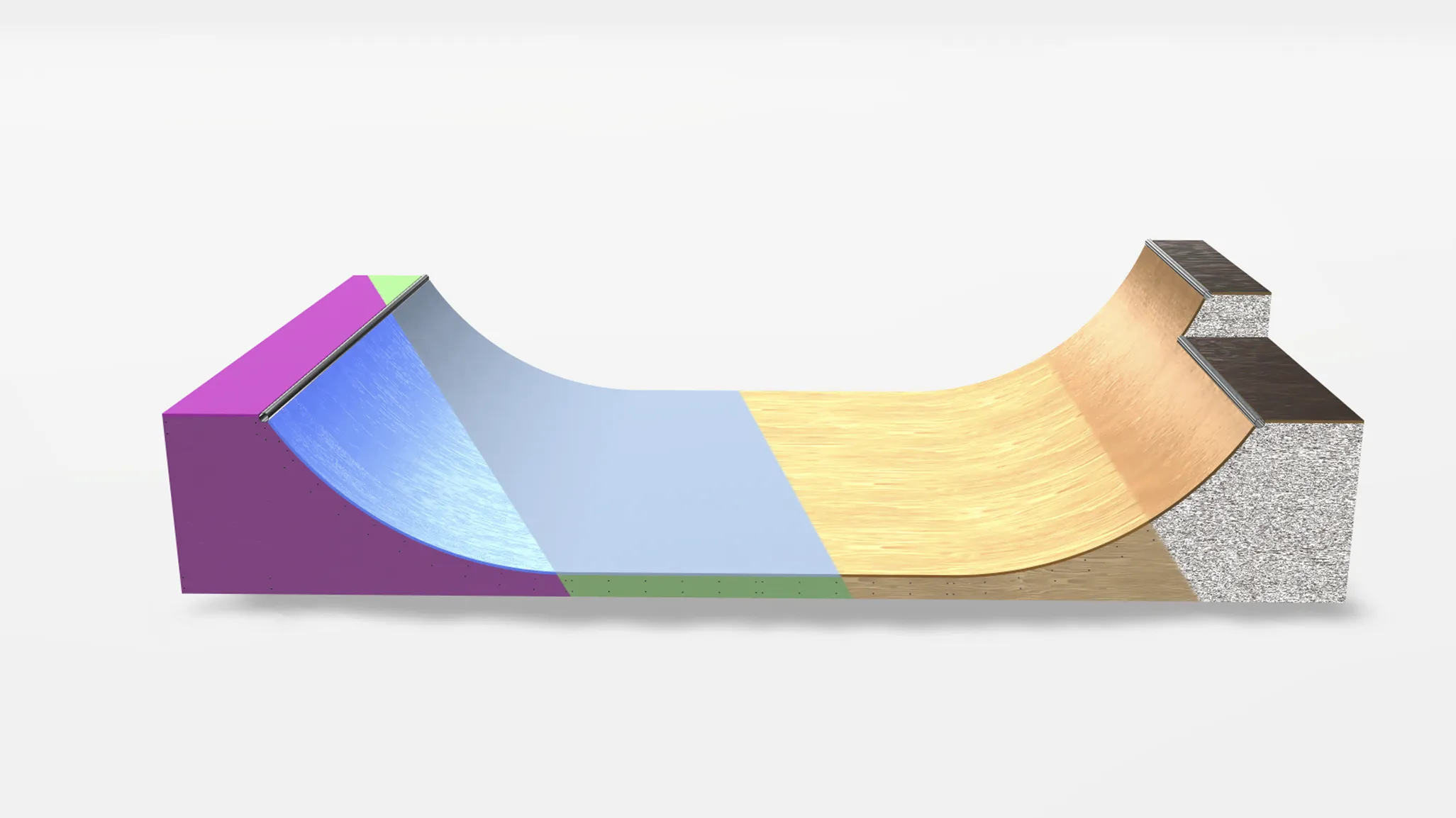

5. Pick Your Finish

Plain wood? Clearcoat? Paint? Get real-time visual updates and exact coverage estimates. The right products and amounts are added to your BOM automatically.

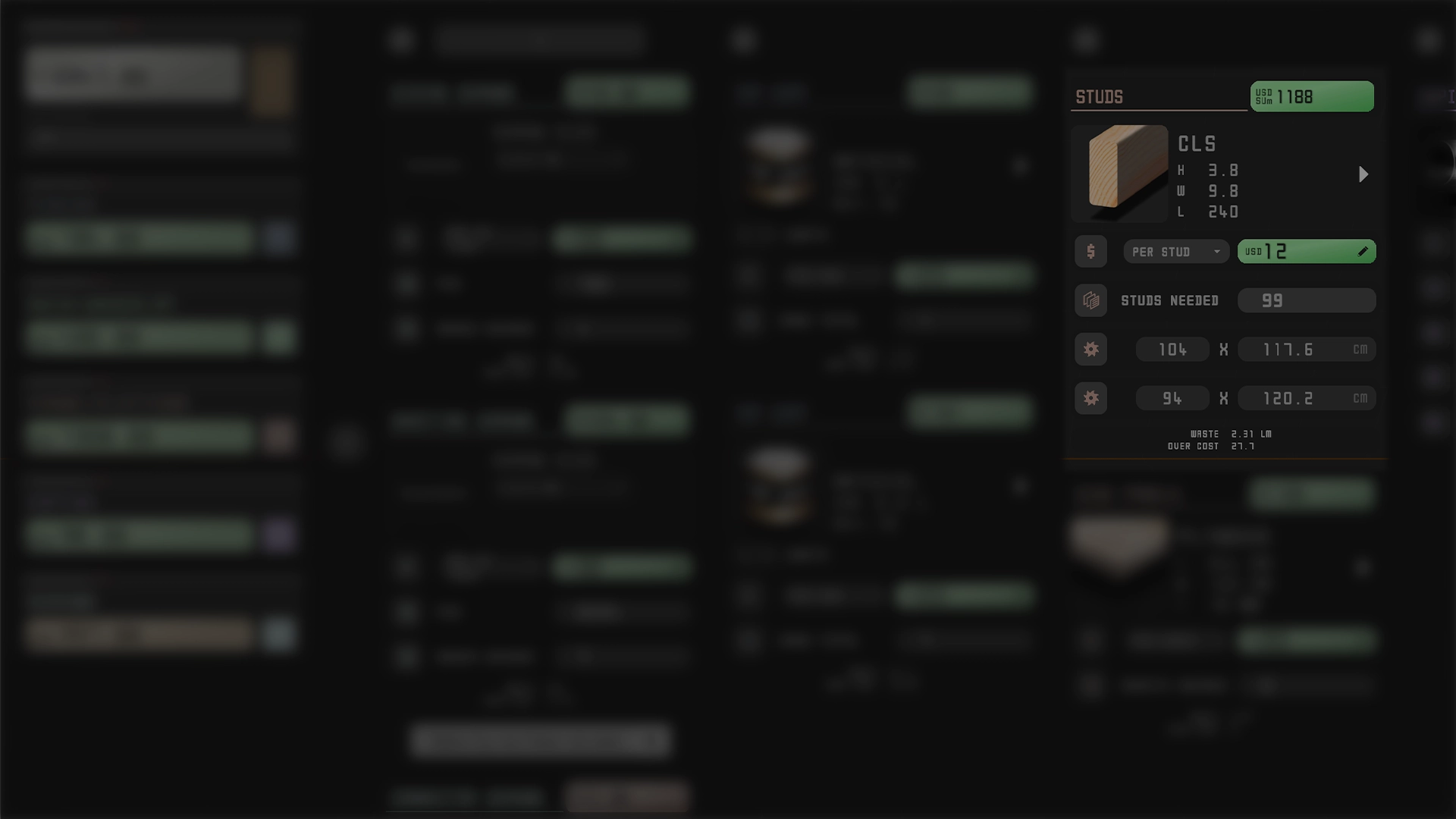

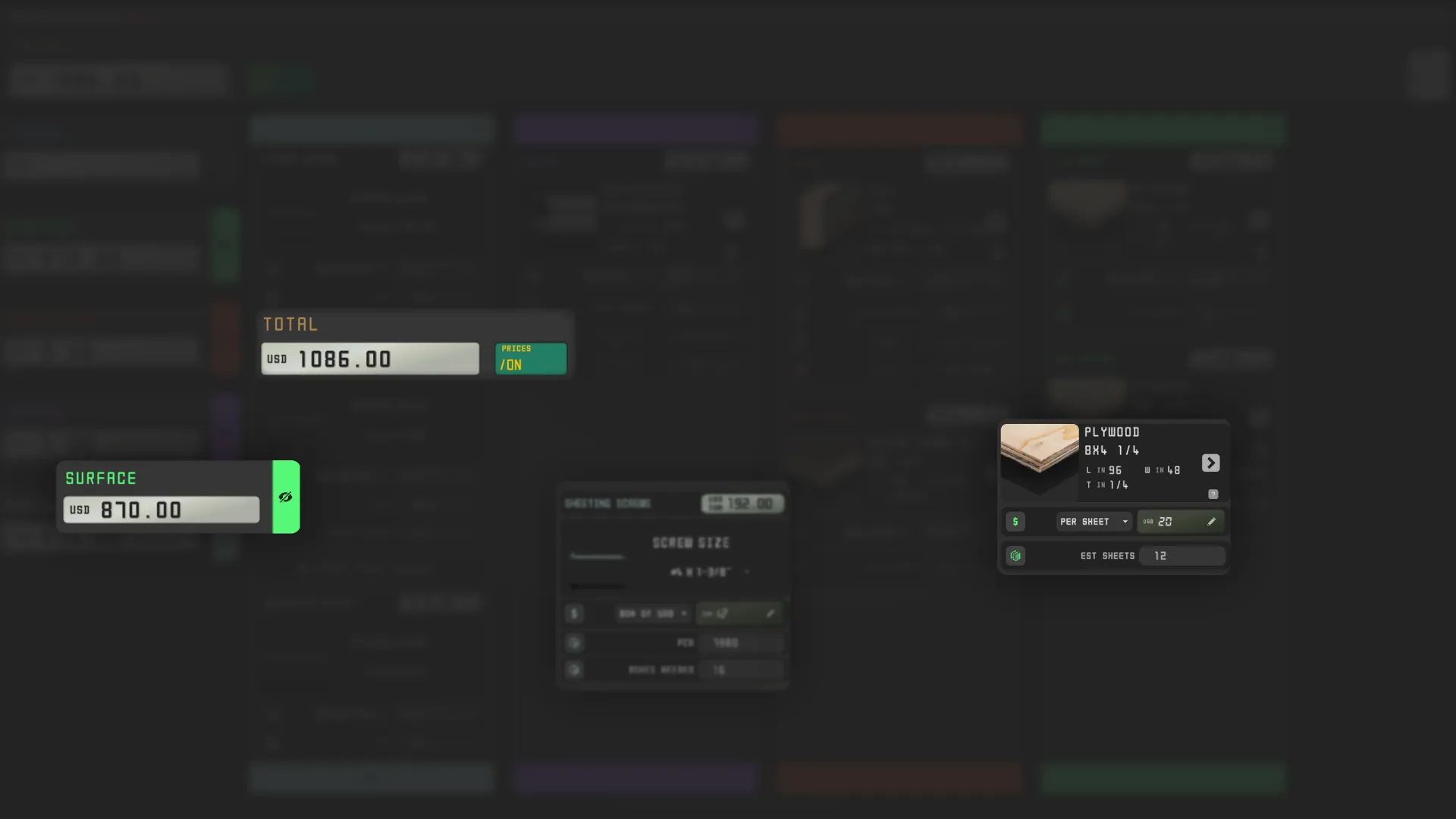

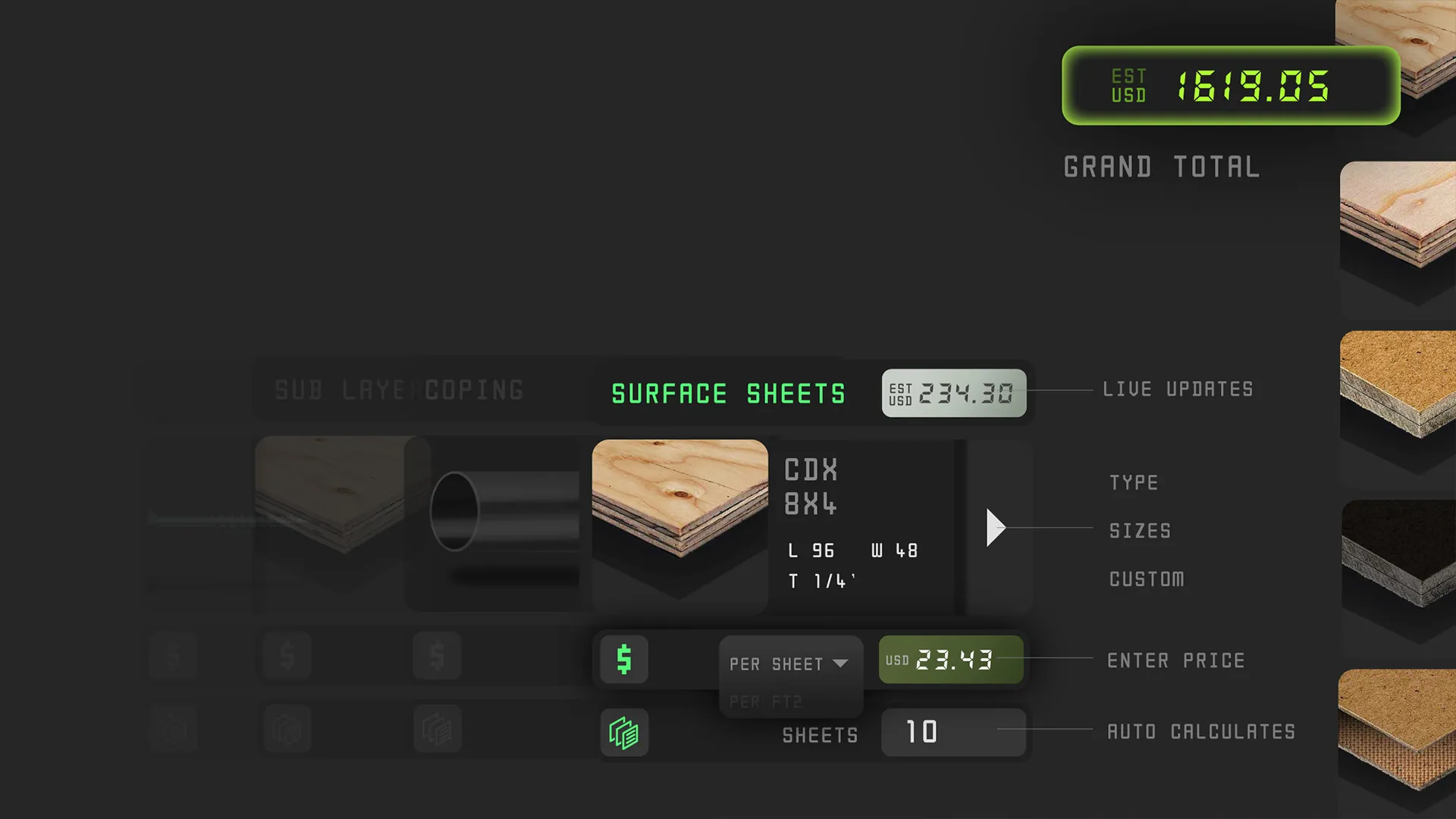

6. Get Live Cost Updates

Enter your actual material prices—per sheet, screw, or item. See total cost update live as you tweak your build. Stay on budget, no surprises.

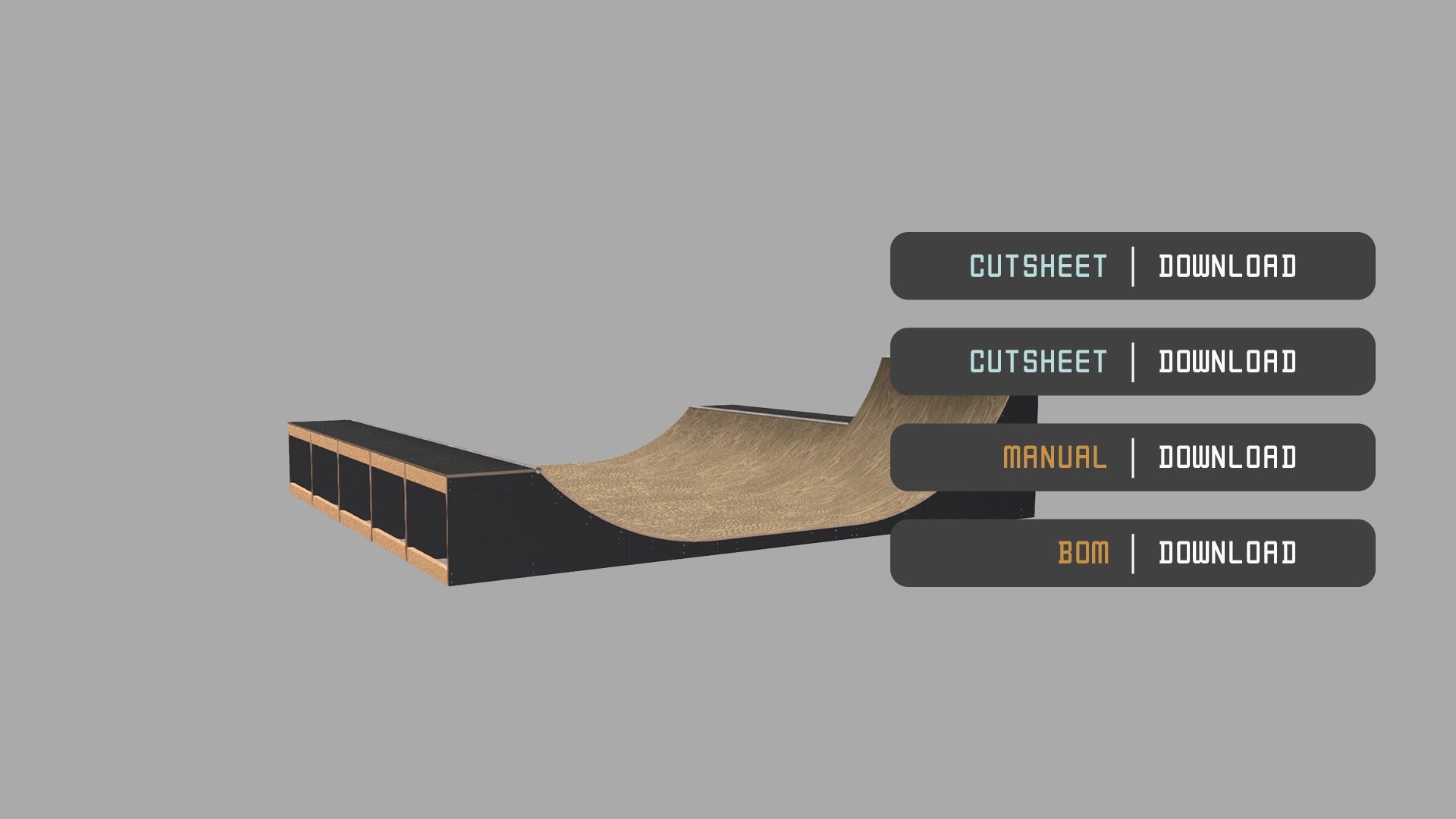

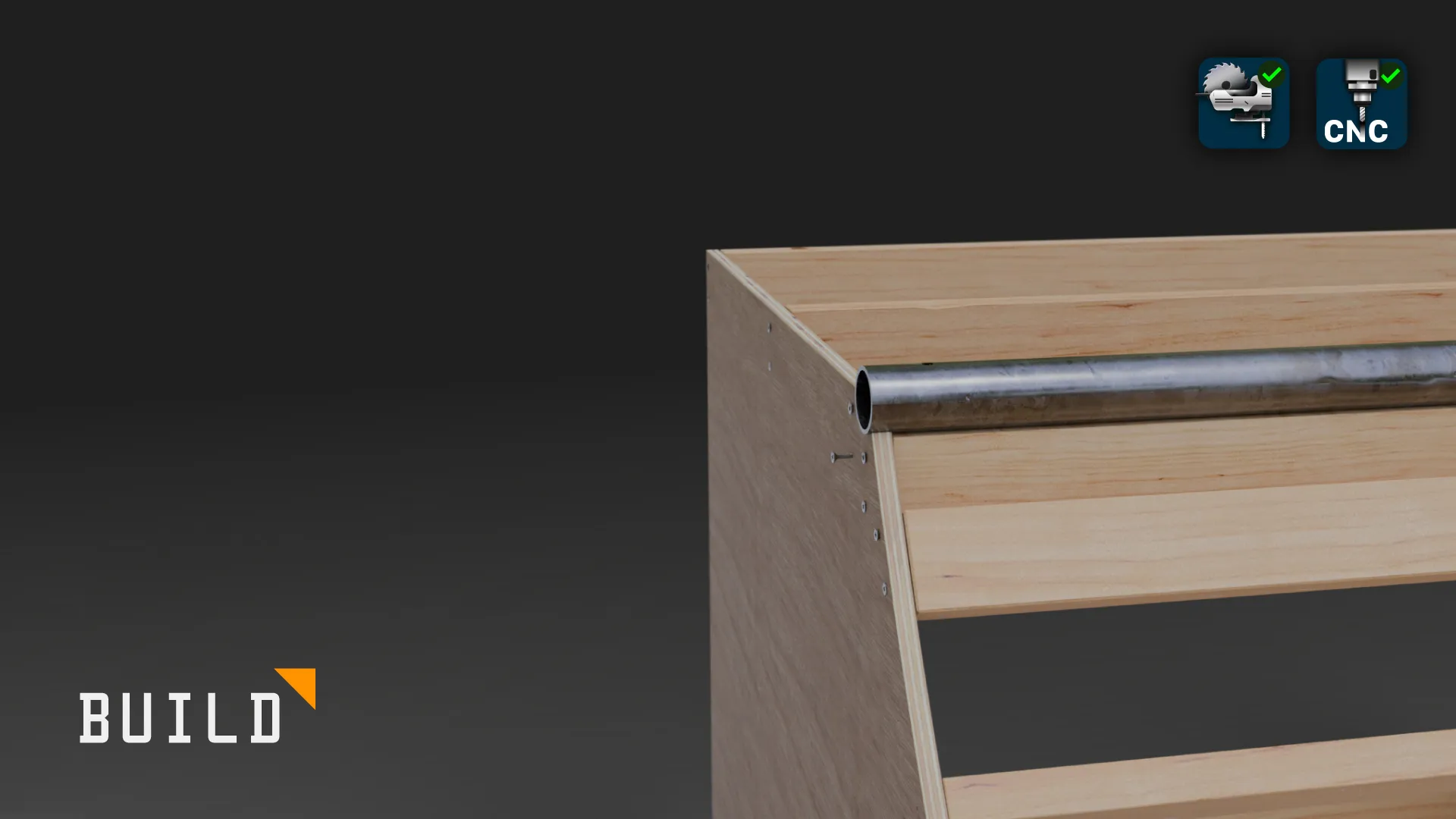

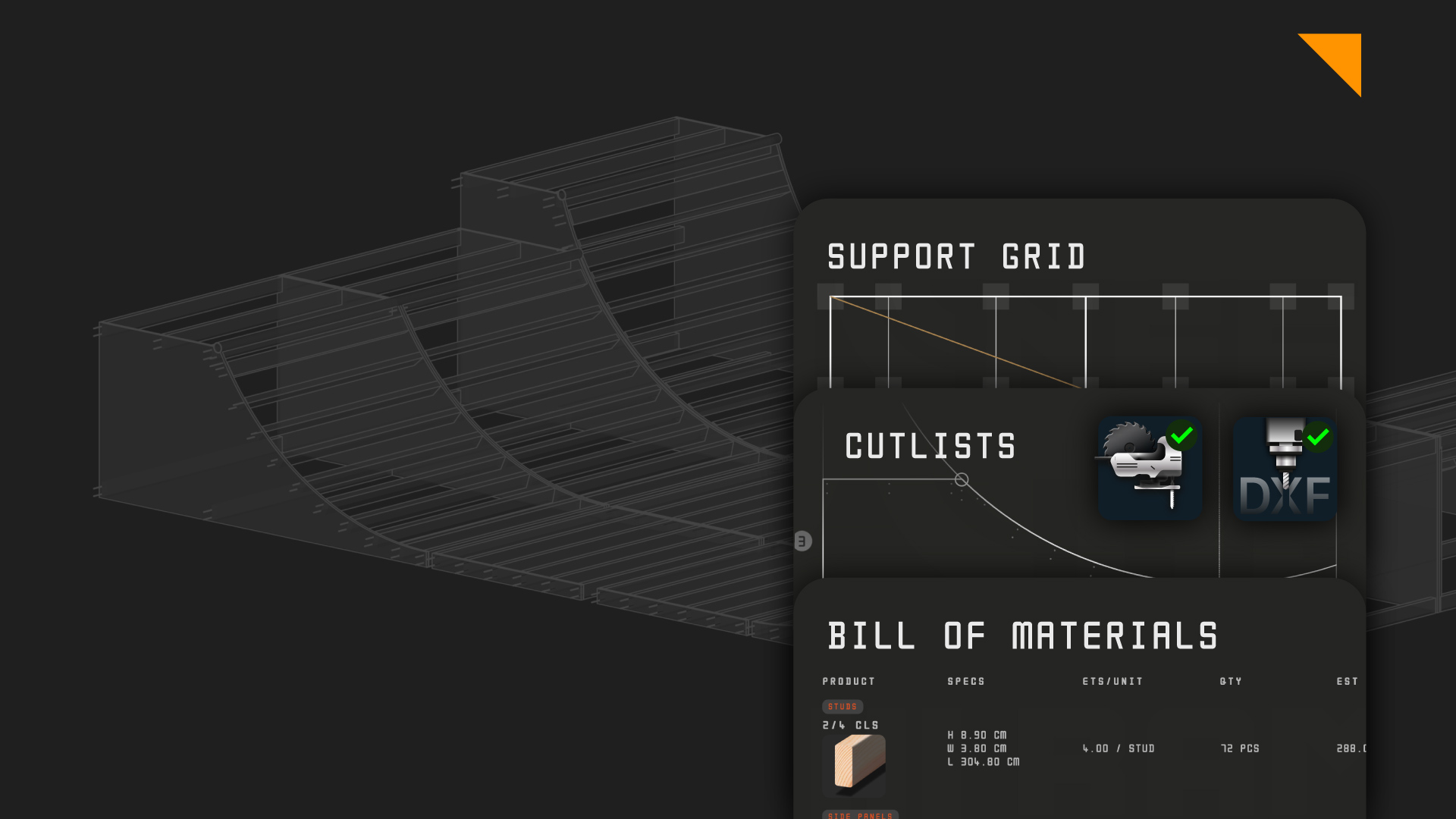

7. Export Everything

Done? Click export. Get your CNC-ready DXF files, printable cut list, full BOM, and build manual—zero guesswork, zero mid-project runs to the store

Feature Highlight

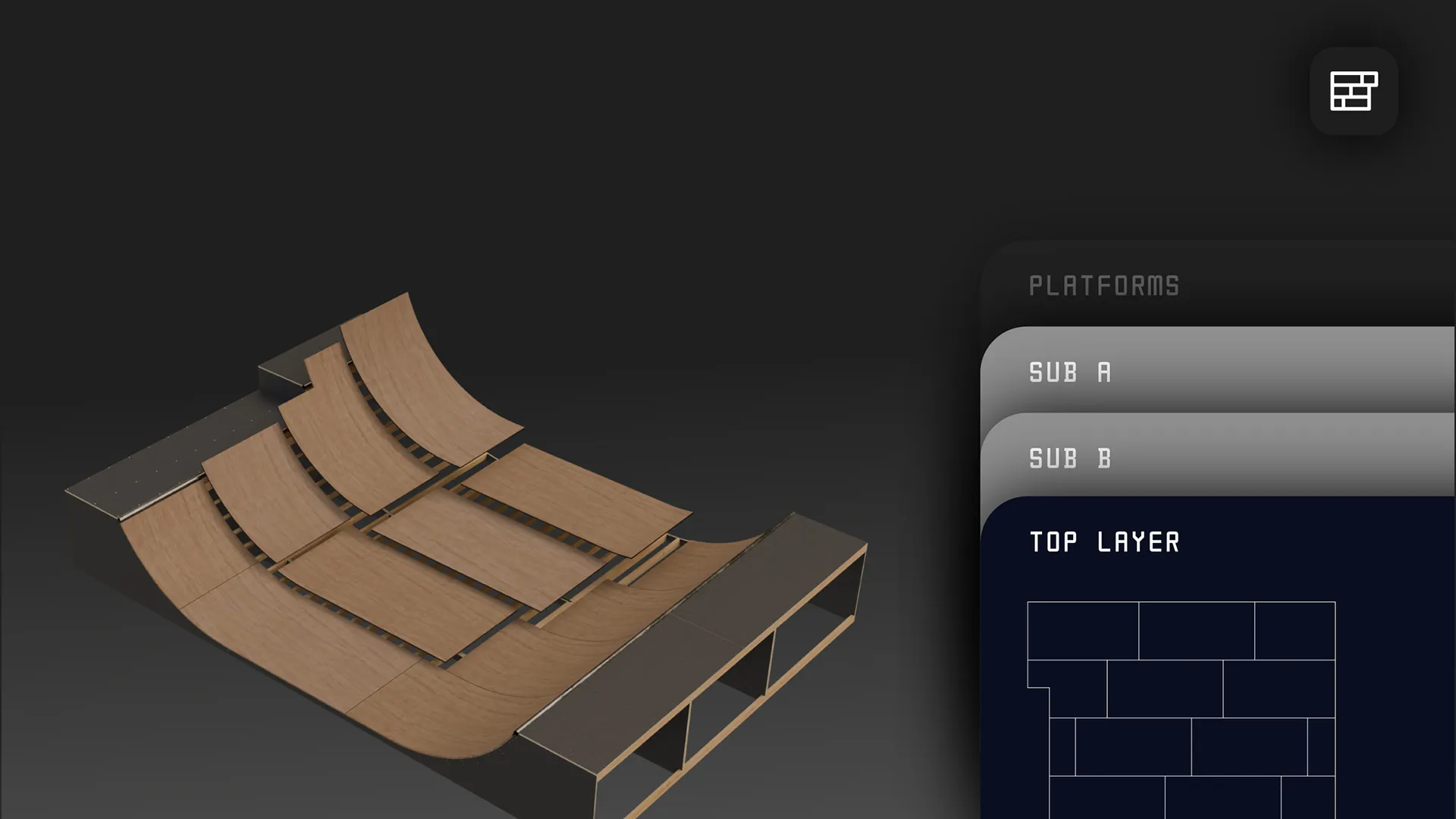

FLEXIBLE DESIGN ENGINE

Defaults to common plywood sizes (244×122 cm / 4×8 ft), but works with any custom sheet size.

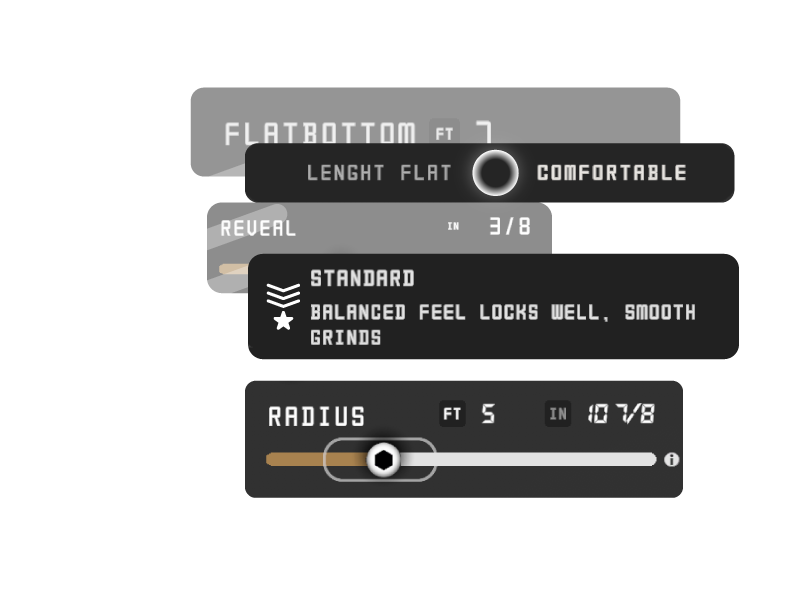

THE COPING REVEAL SOLVER

Live trigonometry ensures perfect coping reveal—flush every time. No guesswork, no sanding on site, no "good enough". It’s either 100% or not at all.

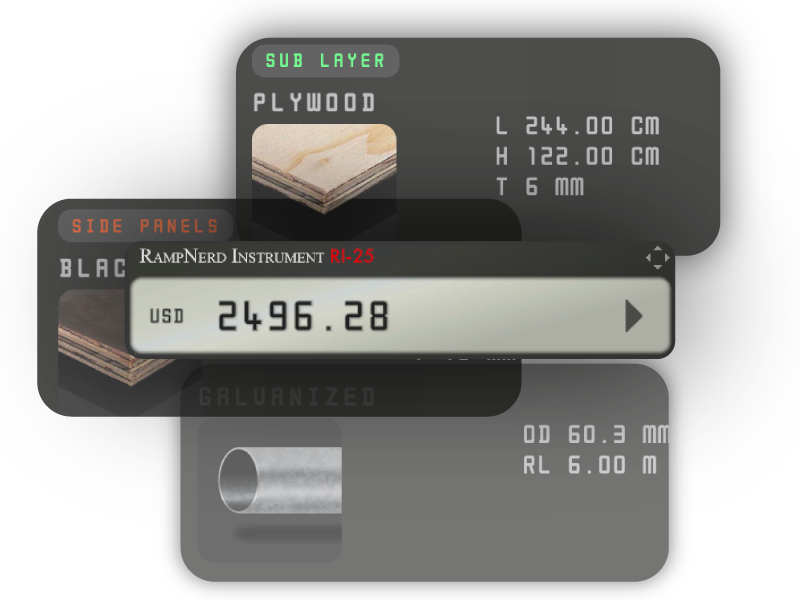

MATERIAL & PRICE LIBRARY

Maintain your own list of sheets, studs, screws, coatings—even presets. Update once, reuse forever. Accurate BOMs, local prices, no vendor lock-in.

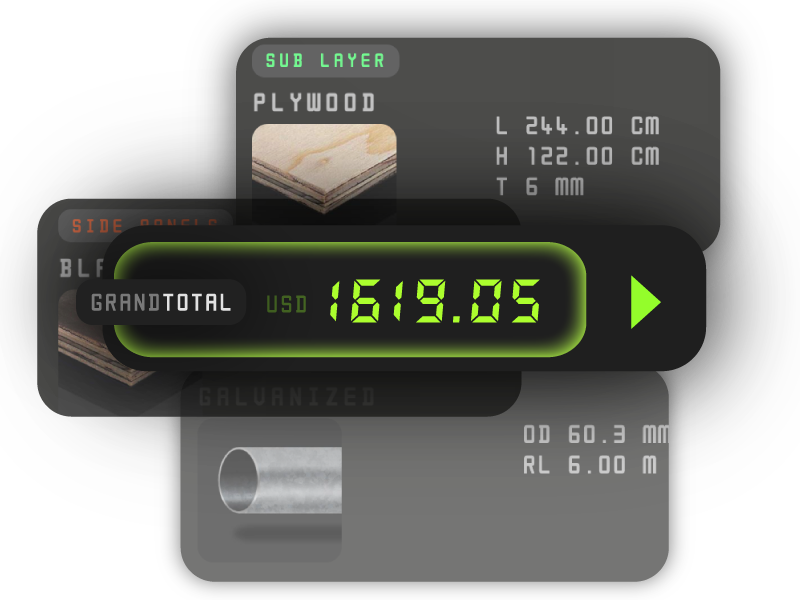

REAL‑TIME COST CALCULATOR

Estimates update as you tweak. Every screw, every sheet, every coat—priced in real time. No surprises at the end.

PRICING

DEMO

FREE

Sign up – no credit card
Explore the full 3D tool
Play around. Test everything.
Nothing is saved or exported
(read-only after export)

PROJECT

50credits

Save and revisit your ramp
Add custom materials + prices
Export DXF, BOM, and cut guide
Keep files forever
(read-only after export)

1 credit = $1

FAQ

Do I need CAD or CNC experience?

No. RampNerd outputs ready‑to‑cut files and plain‑language manuals.

Can I reuse DXF files?

Yes. Build multiple ramps; your licence covers unlimited personal use.

What browsers are supported?

Chrome, Firefox, Safari and Edge on desktop or tablet. No installs.

Is my data private?

We store only anonymous design metadata—no personal identifiers inside DXF layers.
